VALUE POSITION
PCIe Gen 5 CEM connectors meet and outperform industry standard PCIe 5.0 (Proposed) requiring higher speed performance. The optimized series supports backwards mating and is footprint compatible with PCIe 4/3/2/1.
These 1.00mm pitch, vertical card edge connectors enable all Generations of PCI Express® signaling in desktop PCs, workstations, and servers. The connector designs provide support for 32GT/s per differential signal pair.
The base connector family provides x1, x4, x8, or x16 link widths to suit different bandwidth requirements. The basic bandwidth (x1) version supports a single PCI Express lane and is typically used for I/O cards in desktop PCs. The x4 and x8 connectors provide 64 and 98 contacts, respectively, for server I/O. The high bandwidth versions (x16 lanes and higher) are used for applications that require even more bandwidth, such as graphics cards in desktop PCs or riser cards in servers.
PCIe Gen 5 connectors will include options for surface mount (SMT).
PRODUCT OVERVIEW
- Extending differential signaling to 32GT/s for next Generation systems
- PCIe connector overpass Gen 5 high speed performance
- Footprint backward compatible with Gen 4/3/2/1 (Straddle mount excepted)
- 85ohms reference impedance
- Data rate:32GT/s.
- Product configuration includes x1, x4, x8,x16 (36/64/98/164),
- PCB module expectation: Golden finger(add-in card):
- Pad dim (Gen 5) =0.60x3.00mm (Proposed);
- Thickness=1.57±0.13mm
- Reference to Gen 5 electrical, mechanical and environment spec
- Halogen-free compliant
- Vertical PCIe Gen 5 Project timeline
- Vertical SMT Gen 5 – in mass production
More User-Friendly Design Features to Support Customer Extreme Applications

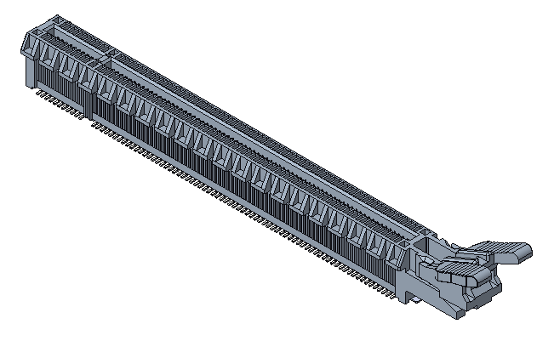

SMT with blade hold down and latch
Latch can help to lock module card for high criterion shock &vibration test

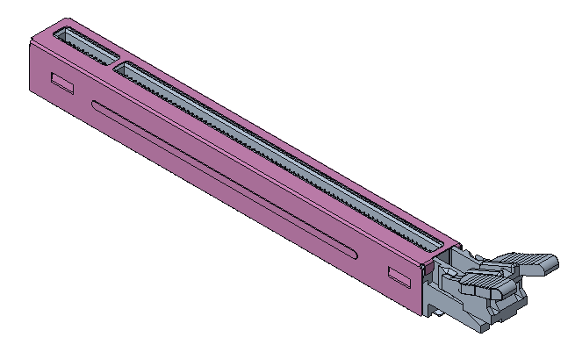

SMT with blade hold down and latch and shell
Latch can help to lock module card for high criterion shock &vibration test
▂▂
SI SIMULATION PERFORMANCE @ 32GT/S
PCIe Gen 5 SMT
PCIe GEN 5
Markets & Applications
Servers
& Workstations
Desktop
PCs
Routers, Switches
& Base Stations
Embedded
Systems
PCIe GEN 5 DRAWING
PATENT CERTIFICATION
