clamshellT-Flash CONNECTOR
▌Integrated - Nano Sim & Micro Sim & Micro SD Block
More Details
Description

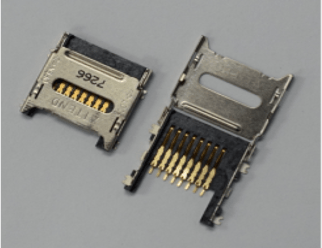

clamshellT-Flash CONNECTOR
P/N
2.50.7020010001
Size (L*W*T)
14.40*14.60*1.93
Plating Specification
Contact area gold plated 5U", solder area gold plated 1U

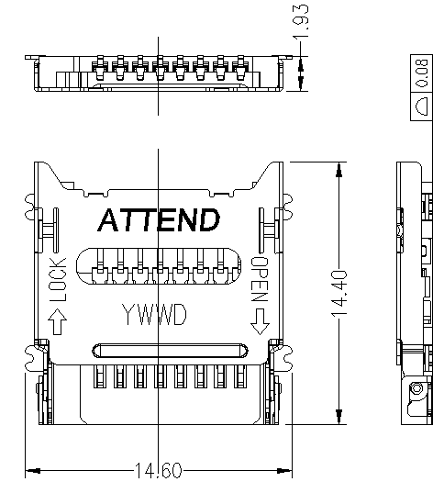

Product Specifications
2.50.7020010001 Flip-Lock Type T-Flash CONNECTOR

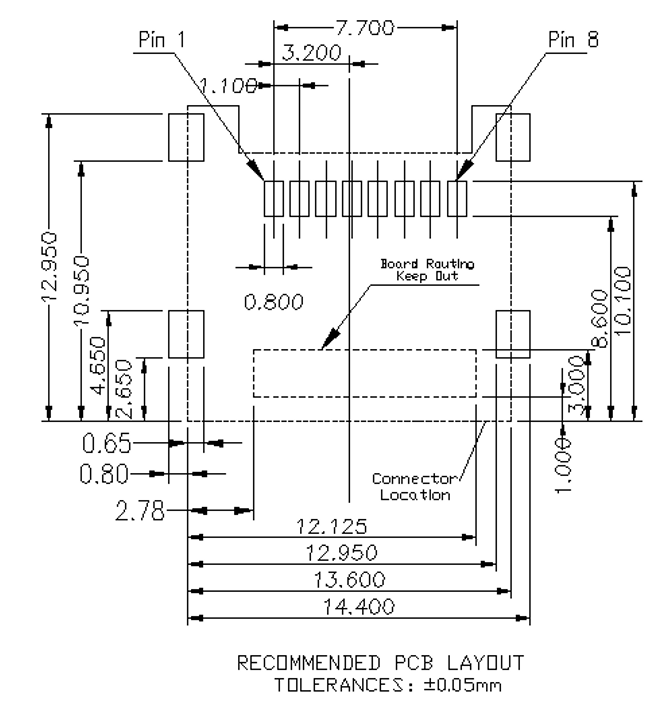

Recommended PCB LAYOUT
2.50.7020010001 Flip-Lock Type T-Flash CONNECTOR
